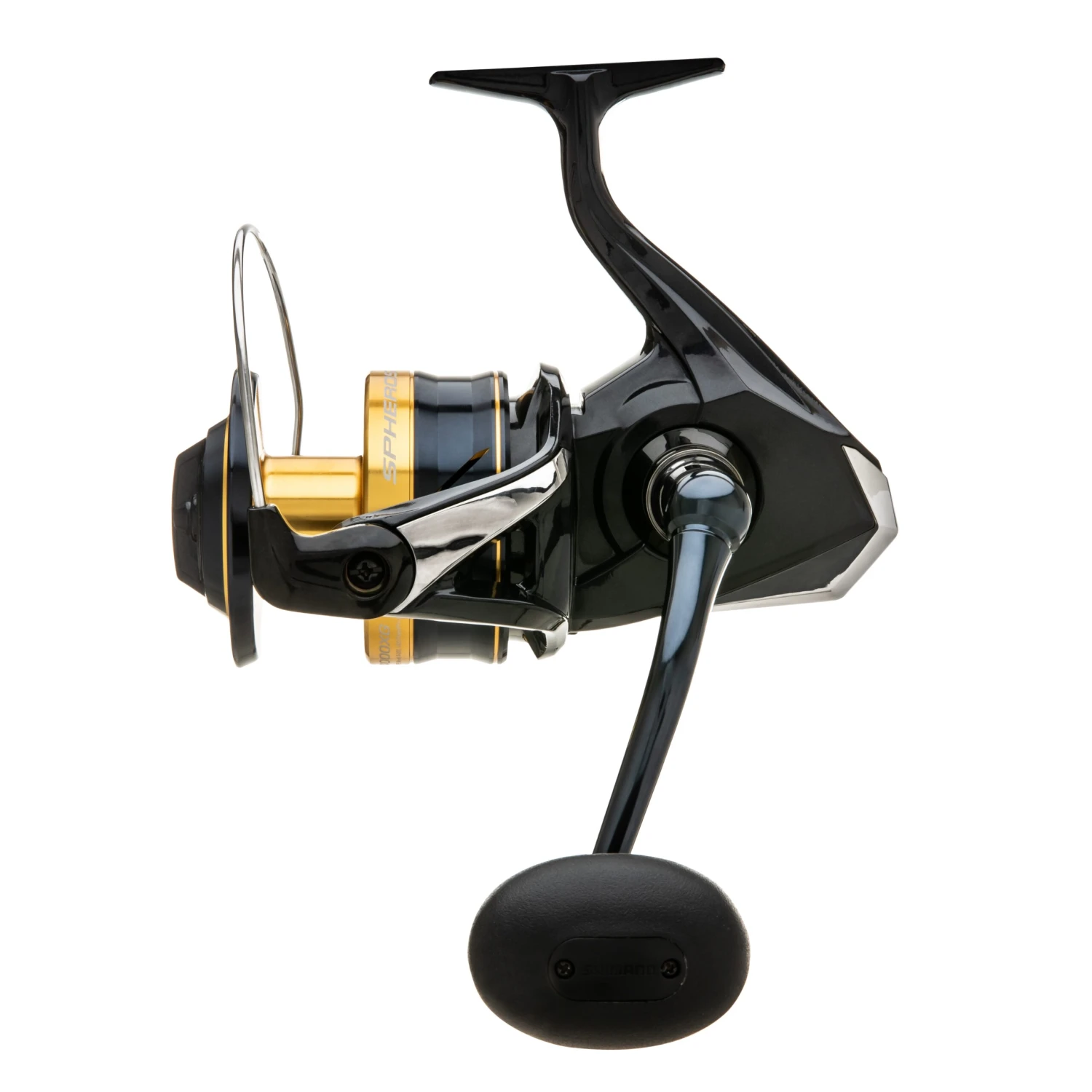

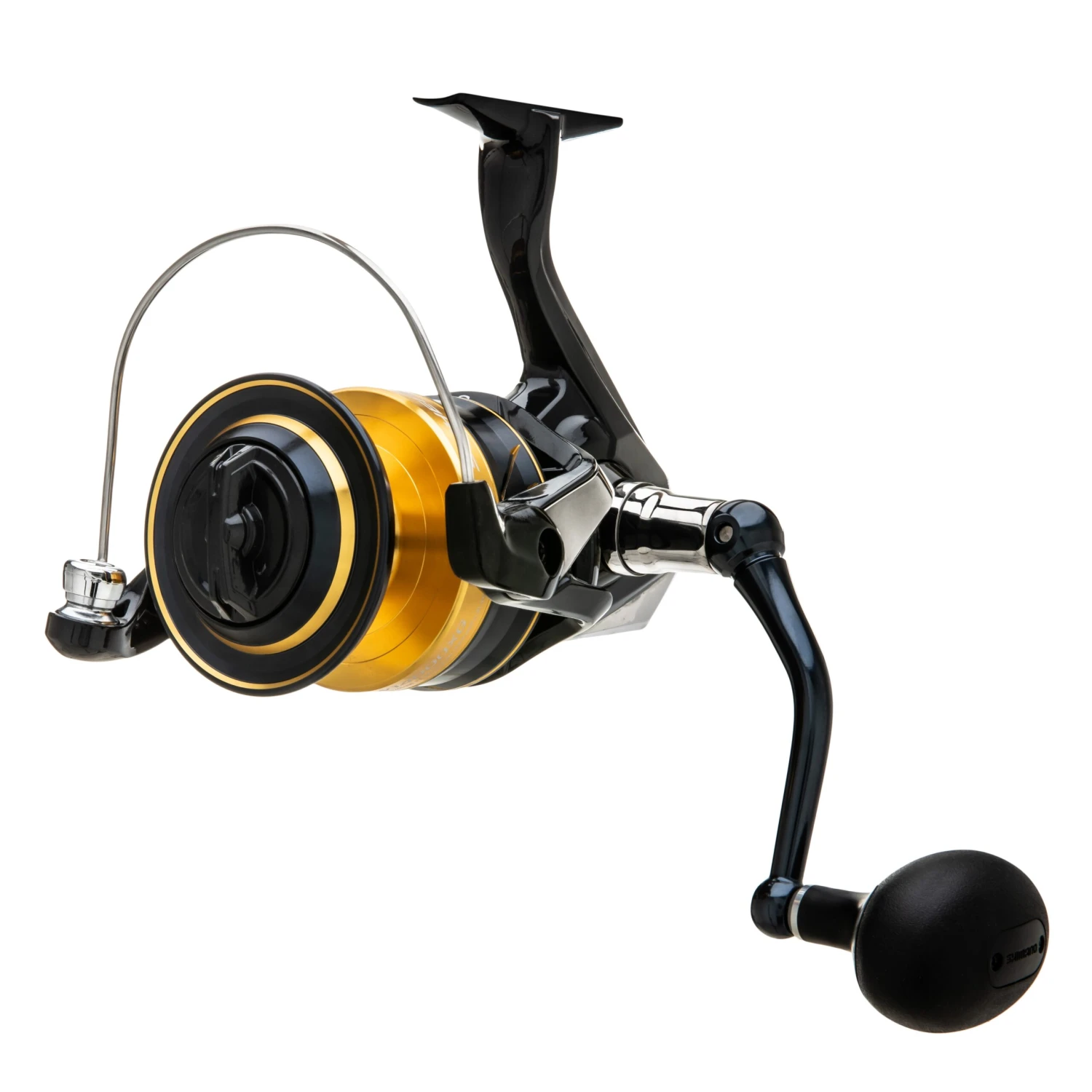

Shimano Spheros SW 14000XGA Spin Reel

The new Spheros SWA features an IPX8 sealed body due to the combination of X-Protect and X-Shield. The Spheros SWA produces effortless handle rotation even under heavy drags. Available in three sizes with specialist gear ratios for different fishing styles. Equipped with the latest and greatest in techonologies for even greater durability and performance.

HAGANE
HAGANE is a Shimano reel design concept created to withstand continual use and extreme abuse. HAGANE is an innovation with built-in toughness and durability that works alongside Shimano’s precision engineering. HAGANE is for all anglers.

HAGANE GEAR
With amazing strength and durability, the HAGANE Gear is at the very heart of most Shimano reels. Shimano, through the application of state-of-the-art technologies, gives anglers the long-lasting smoothness and enjoyment that is felt when anglers first use a reel, over and over again. No cutting work is applied to the teeth of the drive gear during fabrication; instead, the entire surface is calculated in minute detail by a special 3D design and then formed by Shimano’s cold-forging technology. The result is assured resilience. HAGANE Gear is the result of Shimano’s endless pursuit for durability — this strength and power of forged metal continue to represent the fundamental concept of Shimano reels.

X SHIP
X SHIP provides improved gear performance. Large diameter drive gear, optimally positioned pinion gear and drive gear, and two points bearings supported pinion gear produce light reeling under load.

HAGANE BODY
The use of lightweight and rigid metals such as aluminium and magnesium firmly suppresses deflection, distortion, and torsion of the reel. This protects delicate gear meshing and enables smooth reeling.

INFINITY DRIVE
INFINITYDRIVE is a new main shaft supporting structure that improves winding torque and allows for incredibly smooth and light rotation.

X SHIELD
The body is water-resistant equivalent to IPX8 by water-resistant seals on the body, side covers, and other parts of the body.

X PROTECT
For medium and small general-purpose spinning reels, which require lighter spinning, we focused on a non-contact structure that does not compromise the lightness of the spinning. In addition to conventional water-repellent treatment, a labyrinth structure that suppresses water penetration is combined to achieve high water-resistant performance despite the non-contact nature of the structure. It is used in the stopper bearing section and line roller section. Large reels for saltwater, a contact-type water-resistant structure is used for large spinning reels that require higher water-resistant performance. By physically cutting off the entry path of seawater with a low-sliding seal member, high water-resistant performance is achieved while suppressing rotational resistance. The stopper bearing and line roller parts are adopted, and the stopper bearing part in particular achieves a water-resistant rating equivalent to IPX8.

AR-C SPOOL
Shimano AR-C Spool features a special spool ring shape. This design effectively minimises the possibility of issues when line exits the spool, resulting in trouble-free line management and exceptional casting performance.

A-RB
A-RB stainless-steel ball bearings are specially treated to drastically increase the corrosion resistance of the bearing.

Specifications

GEAR RATIO	6.2
DRAG (KG)	12
WEIGHT (G)	710
MONO LINE (MM-M)	0.405-330,0.47-240,0.52-195
RETRIEVE PER CRANK (CM)	135
HANDLE LENTH (MM)	80
BEARINGS	4/1
