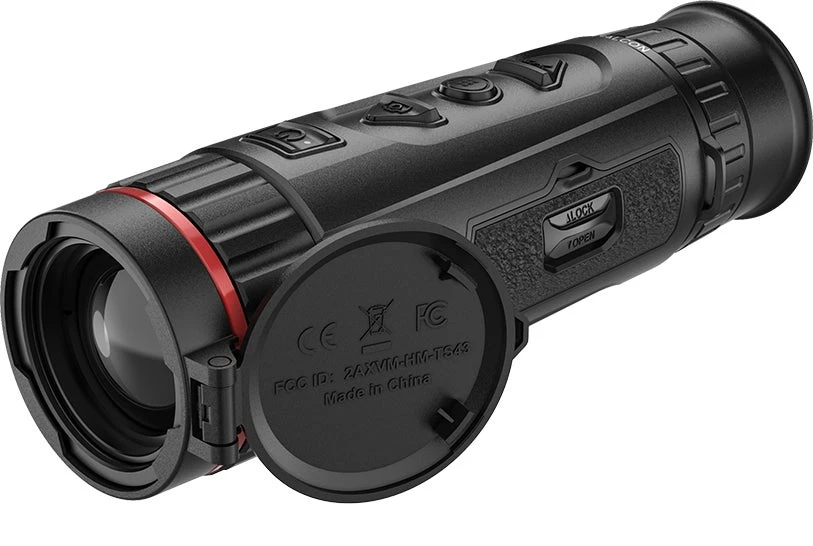

HikMicro Falcon 35mm 640x512vox 20mk Thermal Mono

Product Model

FQ35

Thermal Module

Image Sensor

VOx Uncooled Focal Plane Arrays

Frame Rate

50Hz

Pixel Interval

12μm

Response Waveband

8μm to 14μm

NETD

Less than 20 mK (@25°C),F#=1.0

Detection Range

1800m

Field of View(H ×
V), Degrees / m @100m

12.54°×10.05°/22.0m×17.6m

Min. Focusing
Distance

3.5m

Aperture

F1.0

Digital Zoom

1×，2×，4×，8×

Focal Length

35mm

Resolution

640×512

Optical
Magnification

1.82

Image Display

Palettes

Black hot, white hot, red hot, fusion

FFC (Flat Field
Correction) Mode

Auto,Manual,External Correction

Monitor

0.39 inch, OLED, 1024 ×768

General

Protection Level

IP67

Weight

505g (1.11 lb)

Dimension

190.3 mm ×58.3mm × 65.2 mm（7.49″×2.29″×2.57″）

Work
Temperature/Humidity

From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less

System

Record Video

Yes

Capture Snapshot

Yes

Hotspot

Yes

Standby Mode

Yes

Storage

Built-in memory module (64 GB)

Hot Track

Yes

Power Supply

Power

5V，1.95W

Battery Type

Replaceable and Rechargeable Li-ion Battery

Battery Operating
Time

5 hours continuous running with CVBS and hotspot function off (@25°C)
