HikMicro Falcon 25mm 384x288vox 20mk Thermal Mono

Product Details

1. Extremely high thermal sensitivity, NETD<20mK

High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background is with minimal temperature difference. Besides, self-developed high TCR vanadium oxide thin film material greatly improves sensitivity. The smallest details of objects and backgrounds can be identified easily and clearly.

2. High definition thermal sensor, up to 384×288 @12μm
Equipped with 12μm high-end thermal sensor and up to 640×512 pixel resolution offer an excellent temperature resolution to ensure the thermal image significantly sharp and richly contrasted.

3. Super large aperture f/0.9 lens, 19% improvement
With a high-performance aspheric germanium lens, the super large aperture f/0.9 offers better temperature radiation capturing capability. Compared with the f/1.0 aperture, the capturing of temperature radiation level is increased by 19%. The larger the aperture is, the more infrared radiation can be captured, and the image will be much clearer.

4. Image Pro, enhanced self-developed image processing algorithm
Image Pro, HIKMICRO’s self-developed image processing algorithm, ensures the maximum digital image optimization depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background.

Significantly Improved Design. Exceptional ease-to-use

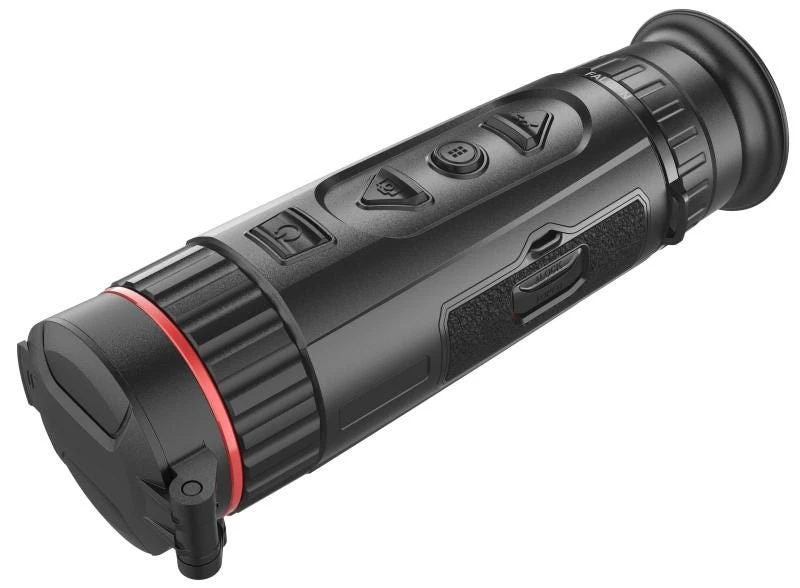

1. Ergonomic cylindrical shape design for better operation experience
The compact and premium cylindrical shape design offers the perfect operation experience. It allows for one-handed operation,and is also optimized for both left-handed and right-handed users. Besides, the device adopts soft and skin-friendly material for a better hand feel.

2. Perfect component design for intuitive operation and ease-to-use
The component design has been greatly improved according to user feedback, which is more in line with the needs of users‘ real use scenarios. The buttons arrangement is very user-friendly and with the different shapes, each function can be identified and controlled intuitively and quickly–even when wearing gloves or under complete darkness.

3. Robust magnesium housing and lens coating material for long-time use
The rugged magnesium housing material prevents sweat, rain, mist and dew from corroding. The objective lens adopts SDLC coating technology, which can effectively prevent scratches. With IP67 waterproof-rated, the device can be immersed in up to 1 meter of water for up to 30 minutes.It’s perfect for constant and often hard use.

Replaceable and Rechargeable High Capacity Battery, Not-stop Observation
On one battery pack the device can run up to 6 hours. With the convenient replaceable feature, another battery unit can be used as the spare one which provides enough power for non-stop operation. Besides, any ordinary power bank connected via a Type-C interface can be used as an external power supply.

See Further or Wider. Catch More Details

1. Long detection range up to 2600m and very large field of view up to 22m@100m
Suitable for different observation scenes, giving a considerable advantage when stalking at night over long distances from a raised hide in a field, or providing a perfect overview in wooded area over short distances.

2. Powerful digital zoom, up to 8x
With 8x digital zoom, objects can be reliably identified and recognized at any time, no details remain hidden, even at great distances.

More Advantages

• Full colour 1024×768 HD OLED display
• Hot tracking mode
• Photo/video recorder with 64GB built-in memory
• Four colour palettes

Specifications

Product Model	FH25
Thermal Module
Image Sensor	VOx Uncooled Focal Plane Arrays
Frame Rate	50Hz
Pixel Interval	12μm
Response Waveband	8μm to 14μm
NETD	Less than 20 mK (@25°C),F#=1.0
Detection Range	1200m
Field of View(H × V), Degrees / m @100m	10.5°×7.9°/18.4m×13.8m
Min. Focusing Distance	2.5m
Aperture	F1.0
Digital Zoom	1×，2×，4×，8×
Focal Length	25mm
Resolution	384×288
Optical Magnification	2.17
Image Display
Palettes	Black hot, white hot, red hot, fusion
FFC (Flat Field Correction) Mode	Auto,Manual,External Correction
Monitor	0.39 inch, OLED, 1024 ×768
General
Protection Level	IP67
Weight	500g (1.10 lb)
Dimension	190.3 mm ×58.3mm × 65.2 mm（7.49″×2.29″×2.57″）
Work Temperature/Humidity	From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less
System
Record Video	Yes
Capture Snapshot	Yes
Hotspot	Yes
Standby Mode	Yes
Storage	Built-in memory module (64 GB)
Hot Track	Yes
Power Supply
Power	5V，1.5W
Battery Type	Replaceable and Rechargeable Li-ion Battery
Battery Operating Time	7 hours continuous running with CVBS and hotspot function off (@25°C)
