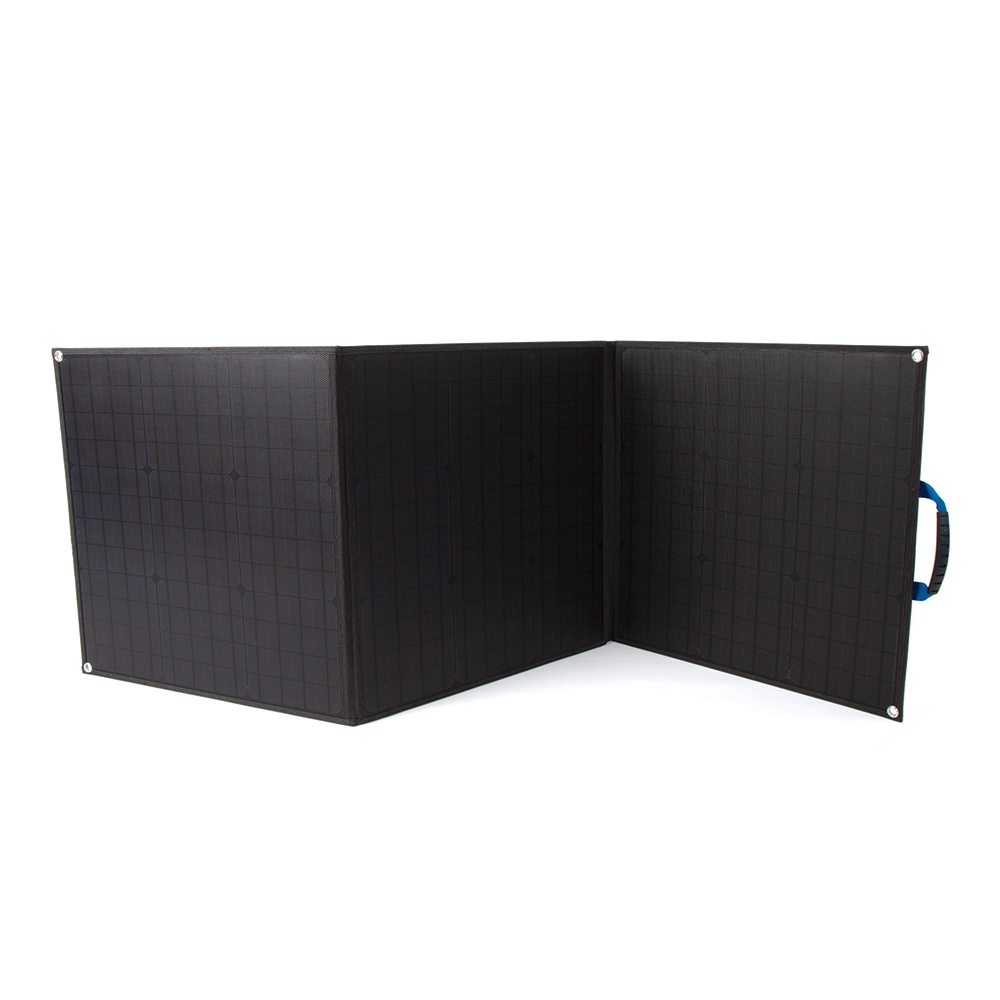

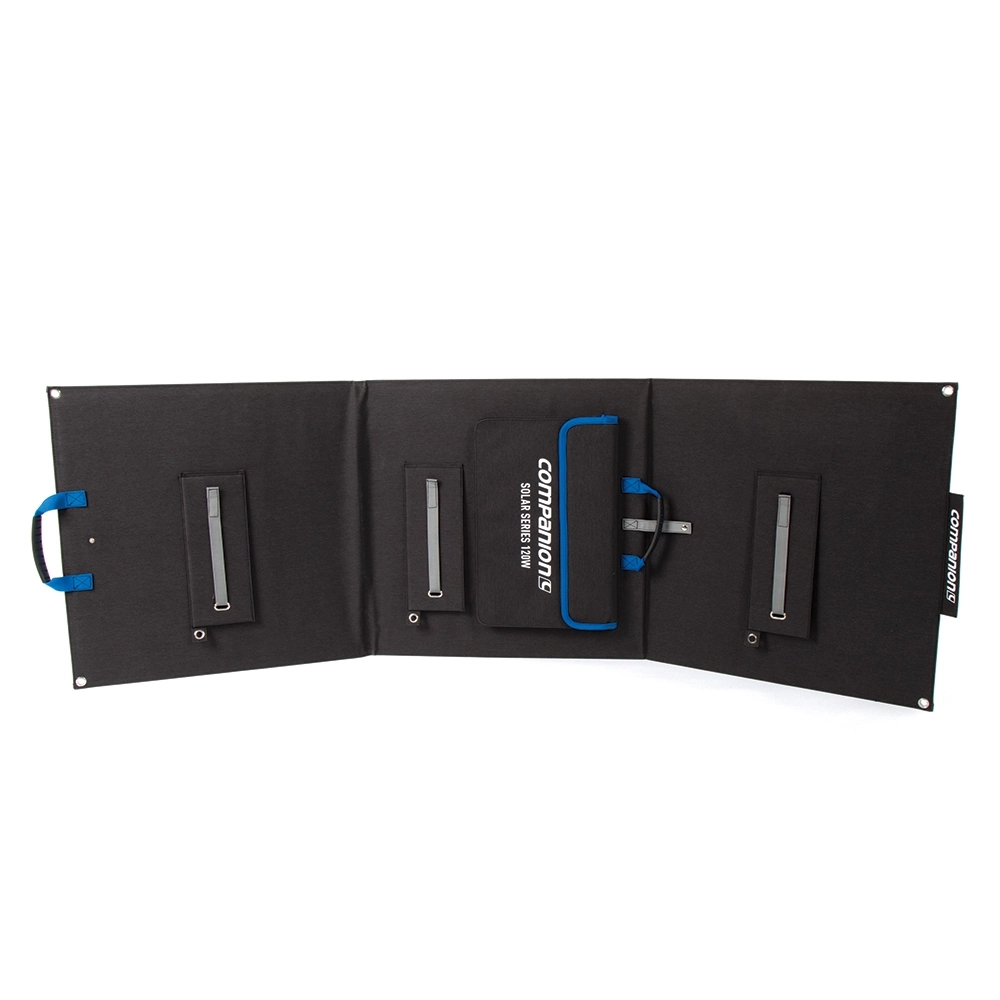

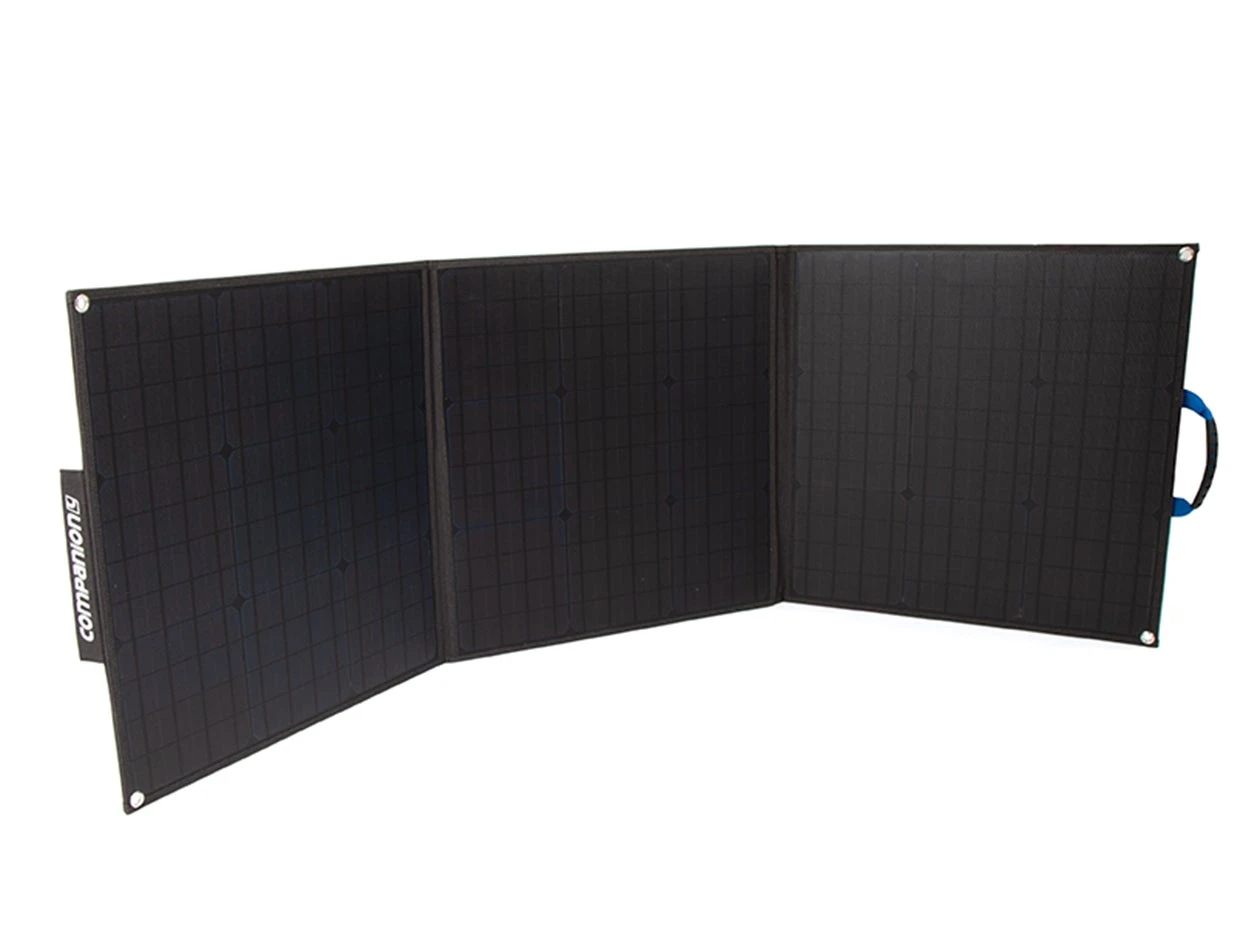

Companion Solar Charger 120W

Product Details

• FEATURES:

  • Made to charge 40AH to 120AH batteries
  • High efficiency solar cells
  • Weather Resistance ETFE lamination
  • Maximum output of 6.67A per hour
  • Inbuilt adjustable stand system for maximised output with peg down point
  • Chainable system; connect two 120W solar chargers together to double output
  • Reinforced eyelets
  • Accessory pocket

  SPECIFICATIONS:

  • Cell type: A-grade monocrystalline silicon
  • Cell Efficiency: 19.5%
  • Cell Backing: Copper
  • Cell Encapsulation: ETFE Lamination
  • Wattage: 120W
  • Max Amp Output Per Hour (lmp): 6.67A
  • Voltage at Max Power (Vmp): 18V
  • Open Circuit Voltage (Voc): 21.6V
  • Short Circuit Current (lsc): 7A
  • Output Connection: 50A Anderson
  • Case Material: 900D Polyester
  • Size (folded): 525 x 525 x 60 (mm)
  • Size (unfolded): 1550 x 525 x 30 (mm)
  • Weight (Panel Only): 5.5kg
  • Controller Type: Pulse Width Modulation (PWM) – Adjustable Settings
  • Controller Stages: 3
  • Controller Amps: 20A
  • Types of Batteries it can Charge: AGM, Gel, Calcium, Li-Ion, LiFePO4, LiNiMnCoO2 (NMC)
  • Input and Ouput Connectors: 50A Anderson
